Description

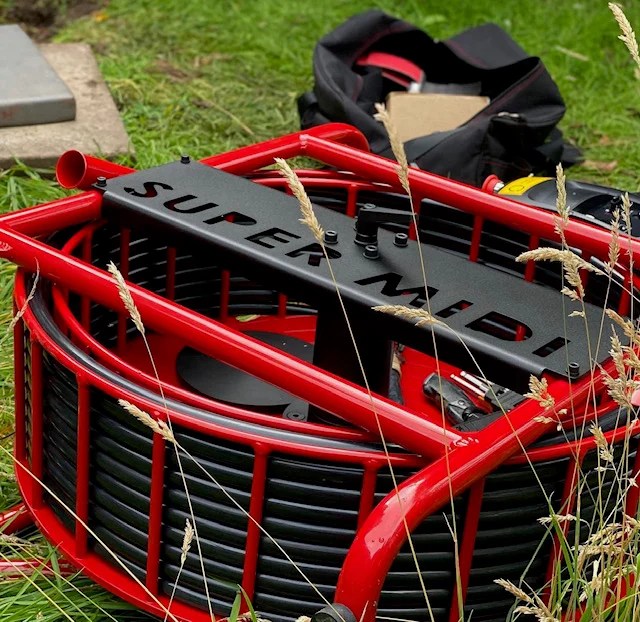

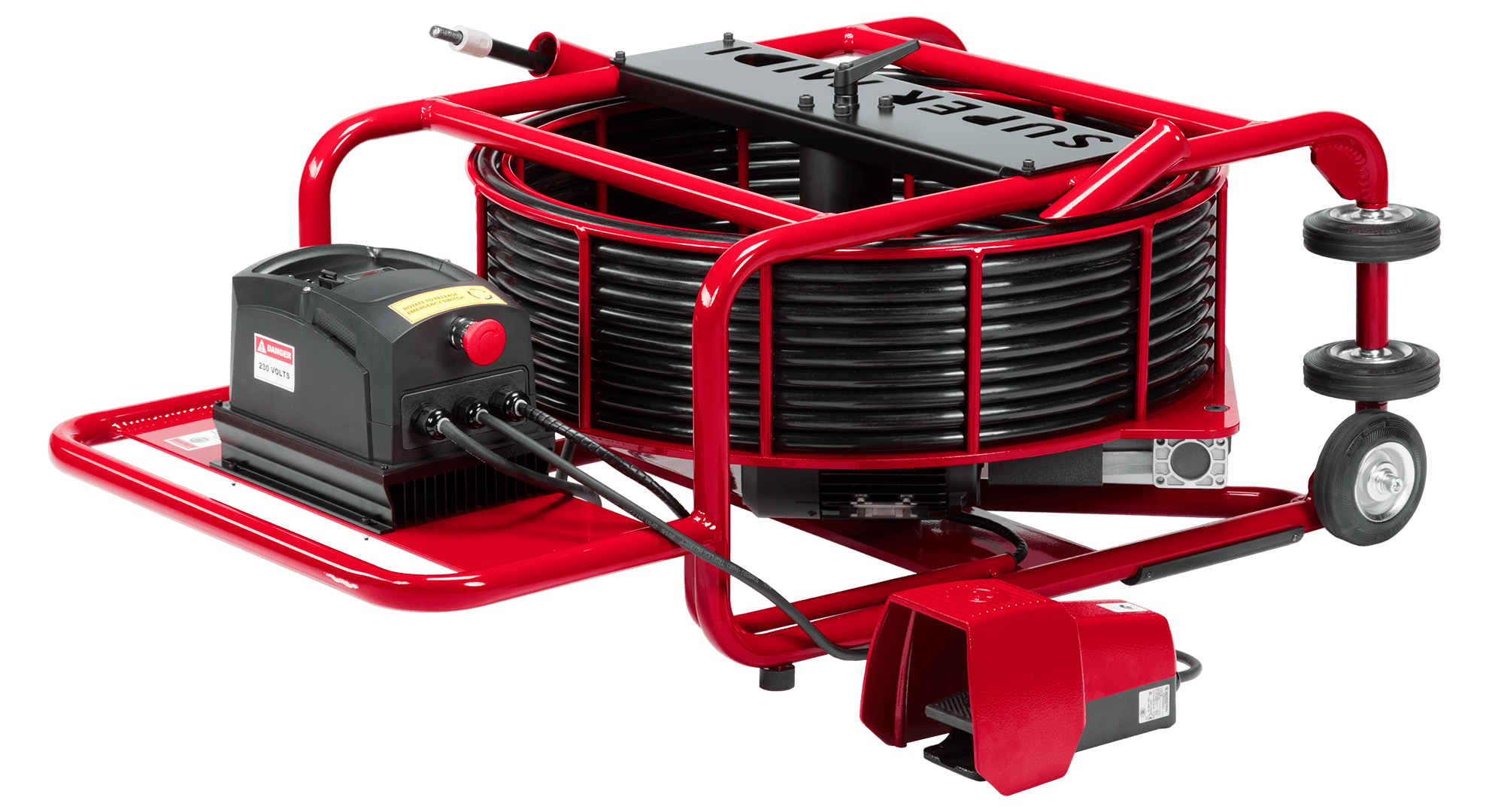

Picote Super Midi Miller
With 67′ of 1/2″ cable, the Super Midi is suitable for work in 3″ – 8″ lines.
Capable of handling an extension cable of up to an additional 50′, and have an electronic clutch. Works with 110V @20amps.
Super Midi Uses and Benefits
The Super Midi is designed for high-speed cleaning with a range of specialized Cleaning Chains. Excellent for unblocking and removing roots, as well as reinstating CIPP connections. Add the Maxi Coating Pump to offer the Picote Brush Coating™ System. Weighs 69kg /152 lbs, 500 to 1500 rpm, 1.5kW output. Lightweight aluminum frame.
Standard safety features include: protective outer shaft casing making the cable safe to hold, shielded operator presence foot control, safety clutch, emergency stop switch.
Technical Specs
| Cleaning / Descaling | DN70-150 (3-6″) |
| Cutting / Reinstatement | DN70-150 (3-6″) |
| Picote Brush Coating | DN70-200 (3-8″) |
| Range | 20m / 65ft + 10m /32ft extension |
Super Midi Miller Operating Manual
Picote Super Midi Miller Product Fact Sheet
How to use
The Picote Super Midi is suitable for a wide range of work inside DN70-150 / 3-6″ pipes:
Descaling | Root Cutting | Reinstatements | Unblocking | Brush Coating | Removing Failed Patches | Cutting Out Intruding Connections | Removing Metal Rebar | Removing Grout | Trimming Back Overshot CIPP Lining
Excellent ‘First Fix’ machine for removing baby wipes and other blockages.
Picote Super Midi Miller – 1/2″ Shaft (#3551031220US)
12/20 Red 110V US
- 1/2″ shaft
- Cleaning 3-6″
- Cutting 3-6
- Brush Coating 3-8″
- Max Range: 65 ft + 32 ft ext
- Weight: 150 lbs
- Speed: 500-1500 rpm
The Super Midi Miller is designed for cleaning, descaling, root removal, and cutting/reinstatements in 3-6″ pipes. It has a range of 65 ft that can be increased by an additional 32 ft with a shaft extension. It can also be paired with the Picote Maxi Coating Pump or Xpress Coating System to coat pipes 3-8″. Offers the added strength of the larger 1/2″ shaft paired with the thinner shaft casing for flexibility. It is fed by a standard wall outlet making it very easy to use on almost any job site.
Standard safety features: protective outer shaft casing, operator presence foot control, electronic safety clutch, and an E-stop.
Additional information
| Weight | 152 lbs |
|---|---|
| Shaft Size | 3/8", 1/2" |
Picote Super Midi Miller
$9,075.00
Description
Picote Super Midi Miller
With 67′ of 1/2″ cable, the Super Midi is suitable for work in 3″ – 8″ lines.
Capable of handling an extension cable of up to an additional 50′, and have an electronic clutch. Works with 110V @20amps.
Super Midi Uses and Benefits
The Super Midi is designed for high-speed cleaning with a range of specialized Cleaning Chains. Excellent for unblocking and removing roots, as well as reinstating CIPP connections. Add the Maxi Coating Pump to offer the Picote Brush Coating™ System. Weighs 69kg /152 lbs, 500 to 1500 rpm, 1.5kW output. Lightweight aluminum frame.
Standard safety features include: protective outer shaft casing making the cable safe to hold, shielded operator presence foot control, safety clutch, emergency stop switch.
Technical Specs
| Cleaning / Descaling | DN70-150 (3-6″) |
| Cutting / Reinstatement | DN70-150 (3-6″) |
| Picote Brush Coating | DN70-200 (3-8″) |
| Range | 20m / 65ft + 10m /32ft extension |
Super Midi Miller Operating Manual
Picote Super Midi Miller Product Fact Sheet
How to use
The Picote Super Midi is suitable for a wide range of work inside DN70-150 / 3-6″ pipes:
Descaling | Root Cutting | Reinstatements | Unblocking | Brush Coating | Removing Failed Patches | Cutting Out Intruding Connections | Removing Metal Rebar | Removing Grout | Trimming Back Overshot CIPP Lining
Excellent ‘First Fix’ machine for removing baby wipes and other blockages.
Picote Super Midi Miller – 1/2″ Shaft (#3551031220US)
12/20 Red 110V US
- 1/2″ shaft
- Cleaning 3-6″
- Cutting 3-6
- Brush Coating 3-8″
- Max Range: 65 ft + 32 ft ext
- Weight: 150 lbs
- Speed: 500-1500 rpm
The Super Midi Miller is designed for cleaning, descaling, root removal, and cutting/reinstatements in 3-6″ pipes. It has a range of 65 ft that can be increased by an additional 32 ft with a shaft extension. It can also be paired with the Picote Maxi Coating Pump or Xpress Coating System to coat pipes 3-8″. Offers the added strength of the larger 1/2″ shaft paired with the thinner shaft casing for flexibility. It is fed by a standard wall outlet making it very easy to use on almost any job site.
Standard safety features: protective outer shaft casing, operator presence foot control, electronic safety clutch, and an E-stop.
Additional information
| Weight | 152 lbs |
|---|---|
| Shaft Size | 3/8", 1/2" |
