Tubolino Inversion Drum 700 6″ With Trolley – ID700

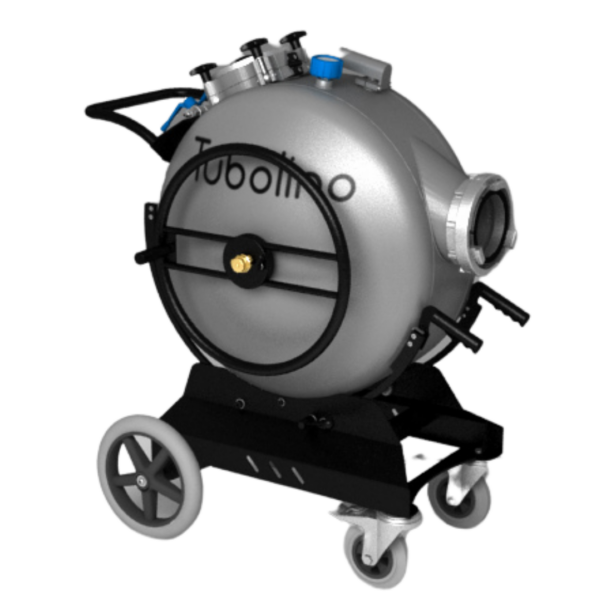

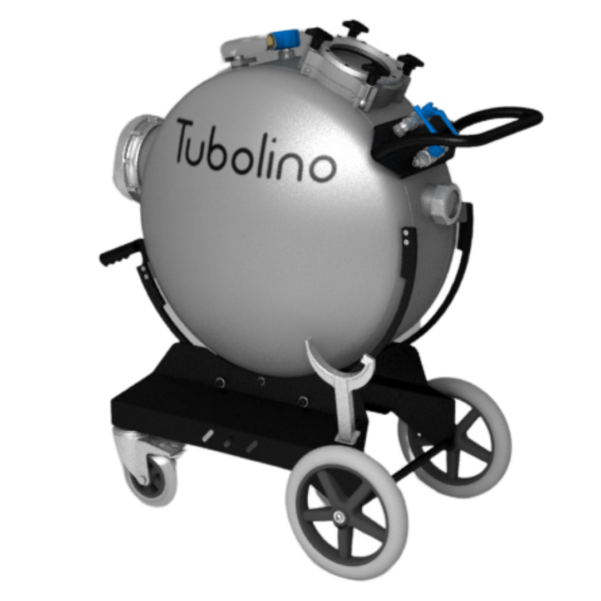

The ID700 is our standard inversion drum mounted on a trolley. It can be directed 128° to position the nozzle at a fitting angle for the shoot. The inversion drum is easy to move due to its low weight and size. It’s 700mm in diameter and is made in aluminum to reduce the weight. The trolley is robust yet slim enough to easily go through doorways or narrow spaces. It has a large wheel giving the operator a better feel of the extrusion process. The ID700 has a large sight glass with a hatch making the inside of the drum easy to access. The inner surface of the drum is ceramic treated to make it smooth and safe for the liner inside. Two robust dividers are mounted on the shaft inside limiting the movement of the liner and eliminating the risk of the liner getting stuck inside as it is rolled in and out of the inversion drum. The trolley is equipped with a holder for the spanner on the side.
- 6″ F-150 Camlock coupling for the nozzle
- Camlock spanner is included
Capacity: approx. 44m DN150 liner depending on liner type and amount of epoxy
ID700: Inversion Drum 700mm with trolley
Versatile and easy to handle drum has a large capacity yet is slim enough to fit in most residential interiors.
ID700 Inversion Drum 700 6″ with trolley
- Approx 150ft capacity 6″
- Approx 225ft capacity 4″
- Approx 300ft capacity 3″
*Storz coupling is available with special order. Please call to inquire.
