Description

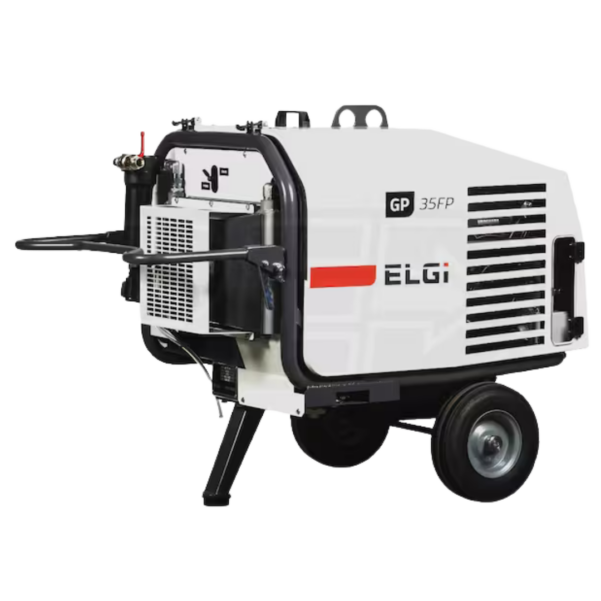

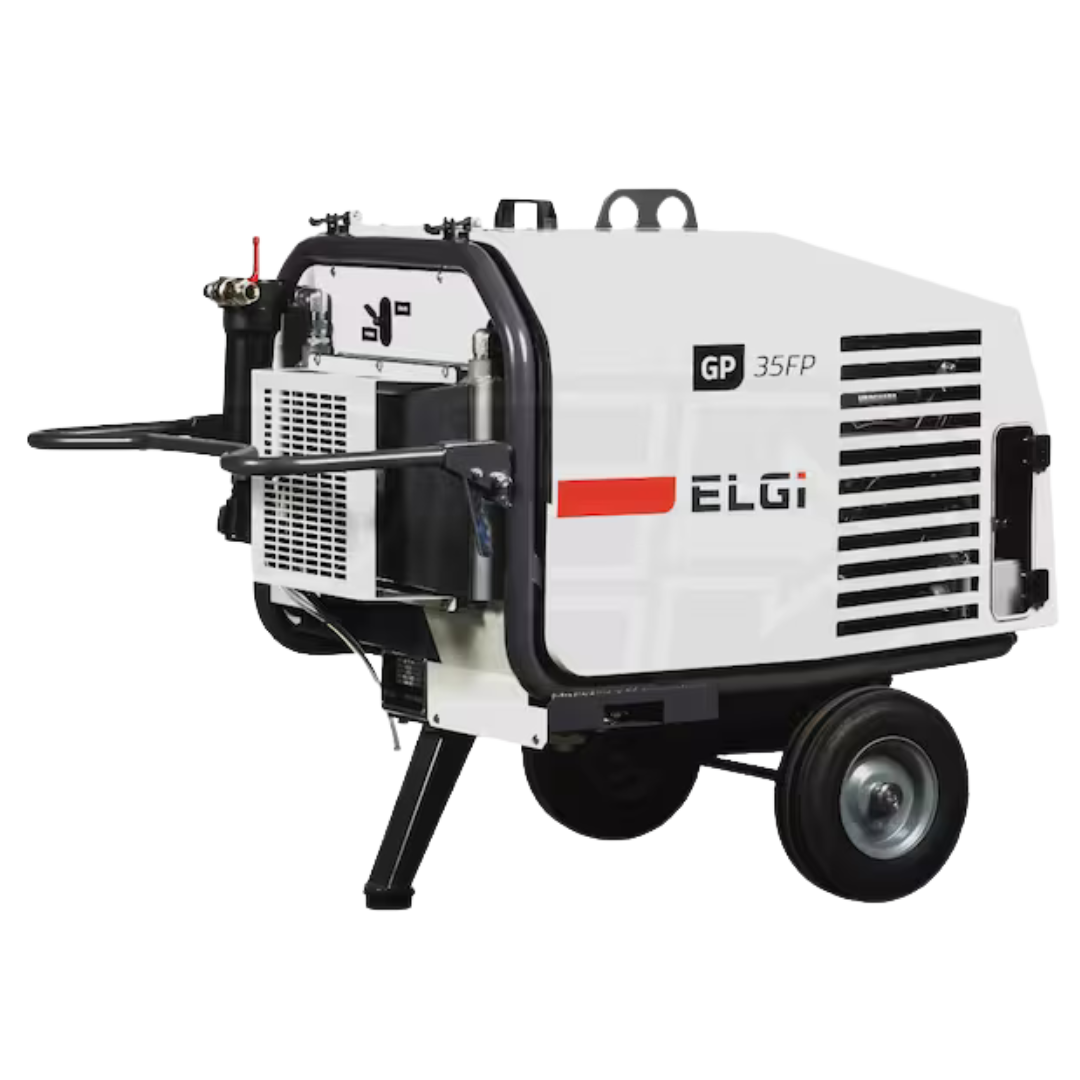

ELGI Portable Compressor Package GP35FP ELGIComp-PKG

ELGI Portable Compressor GP35FP
Vanguard Engine Model 3864
Wheeled with Dual Aftercoolers

• ELGi GP 35FP Portable Rotary Screw Air Compressor
• 627cc 23-HP Vanguard® V-Twin OHV Gasoline Engine
• Electric start for easier operation (Includes Battery)
• OHV design optimizes performance for increased engine life and fuel efficiency
• Superior balance for reduced engine nose and vibration
• 3.9-Gallon Fuel Tank
• Provides over 2-hours of runtime on a single tank of gas
• ELGi Belt Drive Rotary Screw Air End
• Produce 35 CFM @ 218 PSI (Max)
• Minimum working pressure 80 PSI
• Integrated Aftercooler & Moisture Separator
• Reduces service air temperature to 3.6°F over ambient
• (1) 3/4″ Air Outlet w/ Ball Valve
• Compatible with most fiber optic cable blowing equipment
• Easy Service & Maintenance

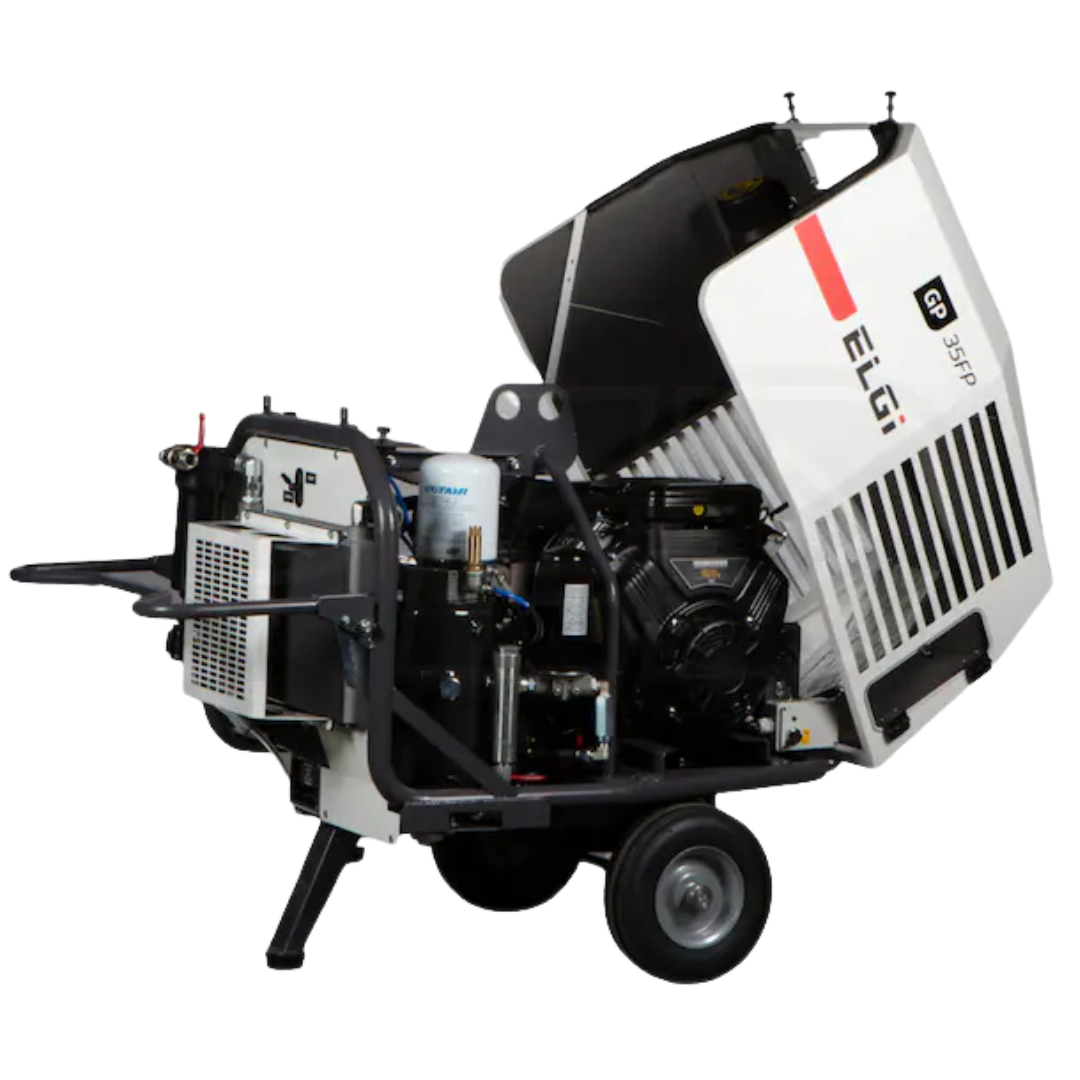

• Enclosure lifts to allow access to all engine/air components
• Portable Design
• Folding handle and pneumatic tires for easier transportation
• Integrated Lifting Point & Forklift Pockets
• Make this easy to lift on the jobsite or when loading/unloading
• 1-Year / 2,000-Hour Full Machine Warranty
• 3-Year Vanguard Commercial Limited Engine Warranty
• 5-Year/ Unlimited Hour ELGi Air End Warranty
• Low Pressure Option: Factory installed low pressure kit to modify
  the GP35 to offer 53 cfm/160 psi
• GP35 50-Hour Service Kit: #519-11-0004
  • Contains:
  • (1) 099-012-S Compressor Oil Filter
  • (1) 511-22-0003 Engine Oil Filter
  • (1) Fuel Filter, (1) 512-12-0000 2.5 G Compressor Oil
• GP35 500-Hour Service Kit: #519-12-0009
  • Contains:
  • (1) 099-012-S Compressor Oil Filter
  • (1) 511-22-0003 Engine Oil Filter
  • (1) 157-170-S Separator Filter
  • (1) 511-10-1726 Engine Air Filter
  • (1) 511-10-1727 Outer Engine Air Filter
  • (1) 162-762-S Compressor Air Filter
  • (1) 511-21-0008 Fuel Filter
  • (1) 512-12-0000 2.5 G Compressor Oil
