picote mini miller
Description

Description

Picote Mini Miller – 1/3″ Shaft (#3540000817US)

  • Reach 16m / 50ft + 10m /32ft extension available
  • High-speed drain cleaning DN50-100 / 2-4″
  • Unblocking & Root Removal
  • Fast reinstatements DN50-75 /2-3″
  • Add Mini Pump for Brush Coating DN50-150 / 2-6″ pipes.

G8/17
*1/3″ shaft
*Cleaning 2-4″
*Cutting 2-3″
*Brush Coating 2-6″
*Max Range: 50 ft +32 ft ext
*Weight: 59 lbs
*Speed: 500-2900 rpm

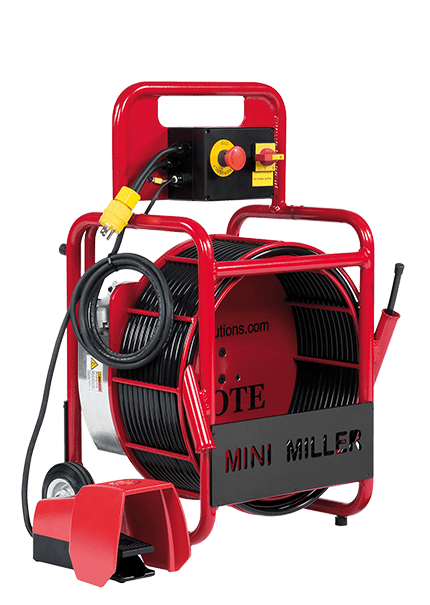

The Mini Miller is a high speed, high torque unit designed for cleaning, descaling, and removing roots in pipes between 2-4″ pipes and for cutting/reinstatements in 2-3″ pipes. When paired with the Picote Mini Coating Pump or Xpress Coating System it is capable of Picote Brush Coating in 2-6″ pipes as well. Weighing only 59 lbs, it’s 1/3″ shaft has a reach of 50 ft which can be extended 32 ft by adding a shaft extension. It is fed by a standard 3 prong wall outlet making it very easy to use on almost any job site.
Standard safety features: mechanical safety clutch, operator presence foot control, protective outer shaft casing & E-stop.

HOW TO USE
The Picote Mini Miller is suitable for a wide range of work inside DN50-150 / 2-6″ pipes:

Descaling | Root Cutting | Reinstatements | Unblocking | Brush Coating | Trimming Back Overshot CIPP Lining

Excellent ‘First Fix’ machine for removing baby wipes and other blockages in small pipes.

110v or 230v depending on region. USA 15 Amp.

Uses and benefits

The Picote Mini Miller is a high-speed, high torque machine for cleaning, descaling and removing roots in smaller pipes. Add the Mini Coating Pump to offer the Picote Brush Coating™ System. Weighs 27kg / 60 lbs, 500 to 2900 rpm, 1100W output. Lightweight aluminum frame.

Standard safety features include: protective outer shaft casing making the cable safe to hold, shielded operator presence foot control, safety clutch, emergency stop switch.

Plug into a standard 3-prong wall outlet (110v / 16Amp transformer required in the UK).

Downloads:

Technical specs

Cleaning / Descaling DN50-100 (2-4″)
Cutting / Reinstatement DN50-75 (2-3″)
Picote Brush Coating™ DN50-150 (2-6″)
Range 16m / 50ft + 10m /32ft extension
Additional Models Mini Miller +C, Battery Mini Miller, Battery Mini Miller +C









Picote Mini Miller – 1/3″ Shaft (#3540000817US)

$4,793.00

Purchase & earn 4,793 points!
